K100-Efficient concrete wallform

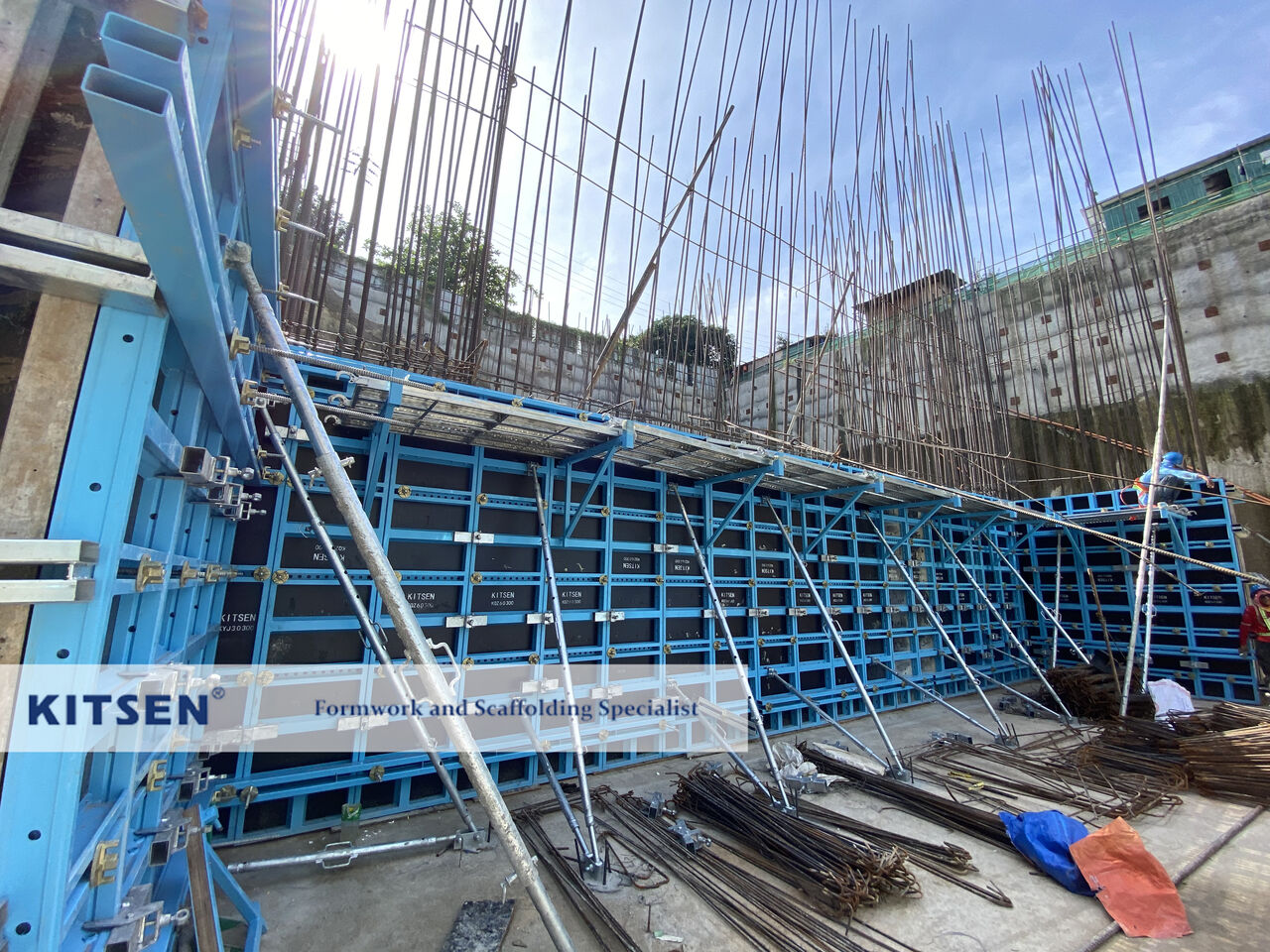

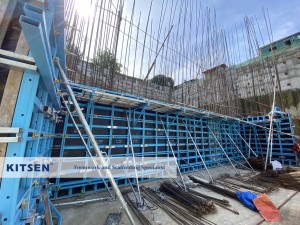

KITSEN K100 Wall and Column formwork is a light and robust wall and column formwork.

ü Safe

- Allowable concrete pressure: 60KN/sqm

ü Efficiency

-Less component, light weight design, average 23kg/sqm

-Construction period: 5 days/floor

-Plastering-free

ü Application

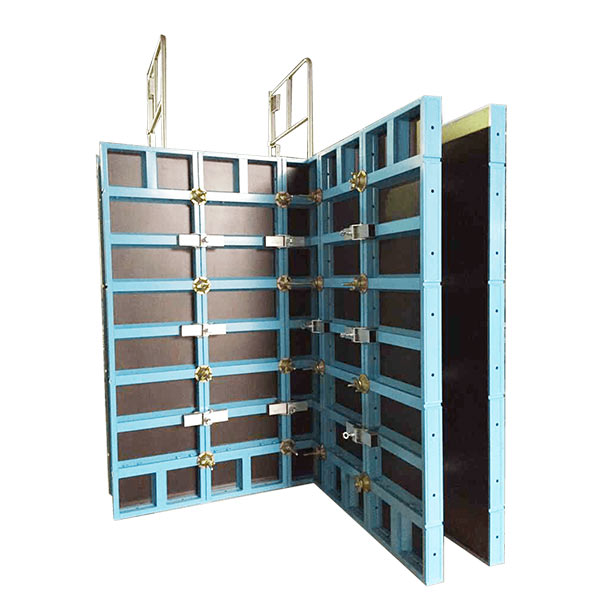

-A completed system with fixed and hinged corners, able to form any shape of wall on site

ü MOQ

-Project based

Product Detail

Specification

•Panel Weight: 8.3-43kg；average 23kg/m²

•Standard Height: 2.4m; 1.2m; 0.9m; 0.6m-also available at 3m&3.3m

•Standard Width: 0.9m; 0.6m; 0.45m; 0.3m--also specific sizes acceptable.

•Allowable Concrete Pressure: 60KN/m²

Application:

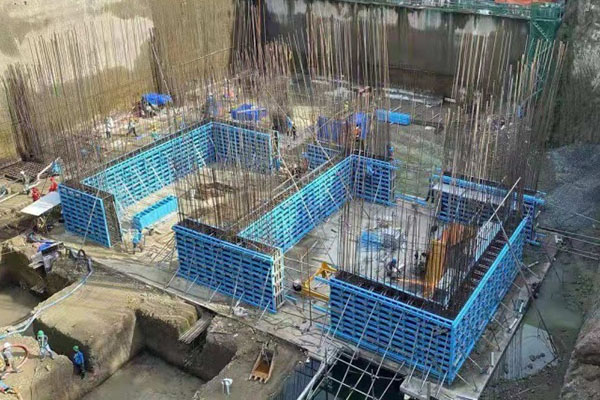

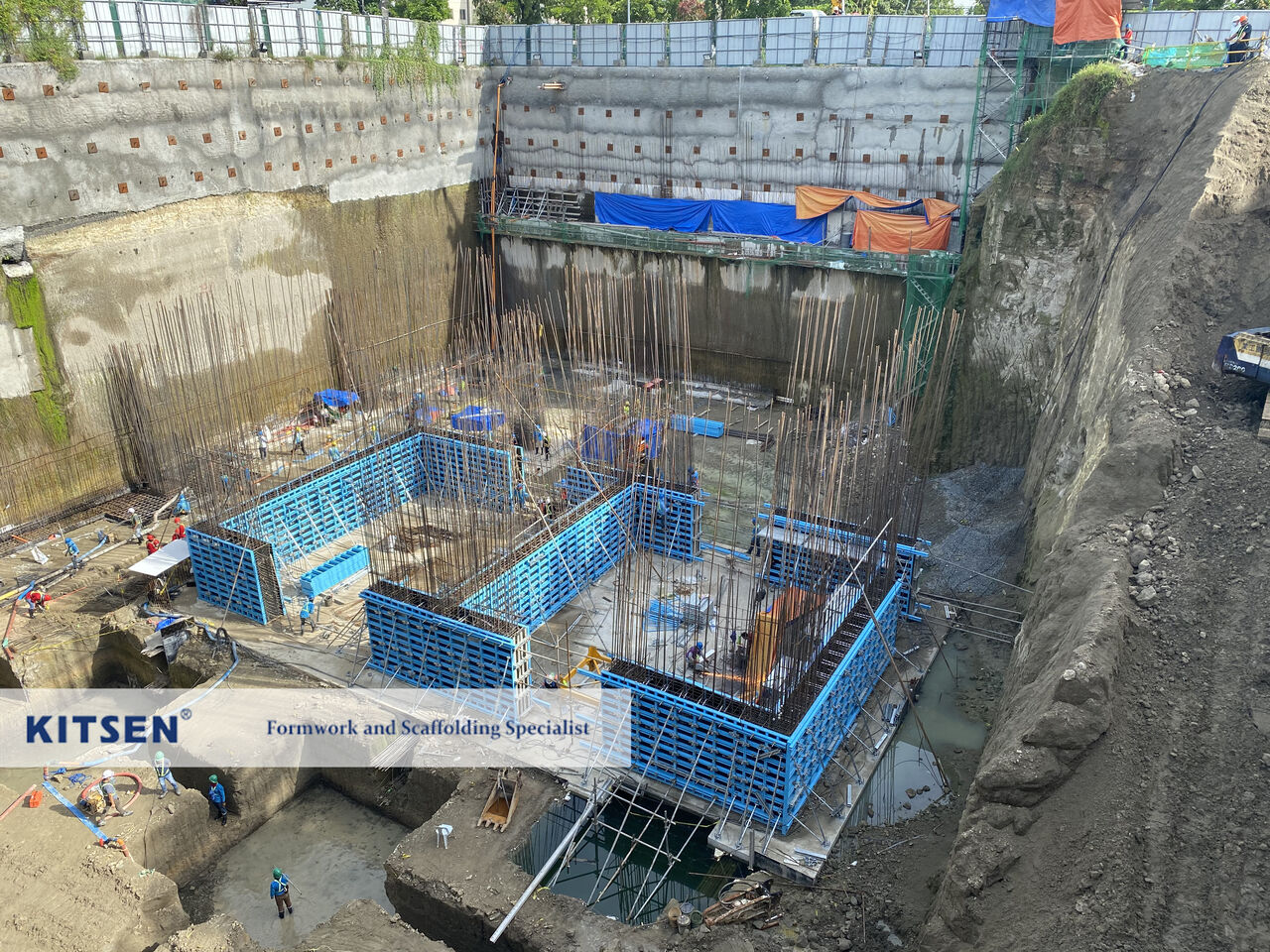

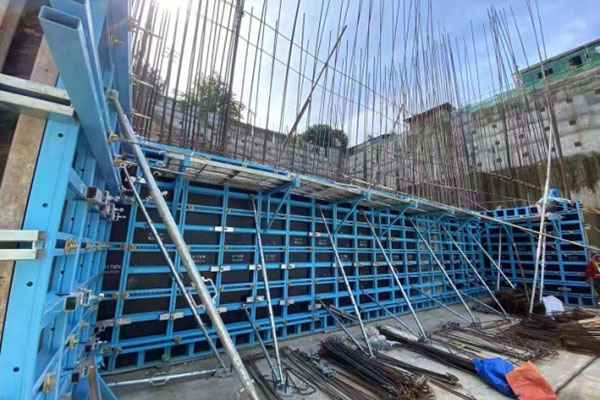

This system is widely applied to huge wall and column construction, bridge pier, dam and slope wall, retaining wall projects.

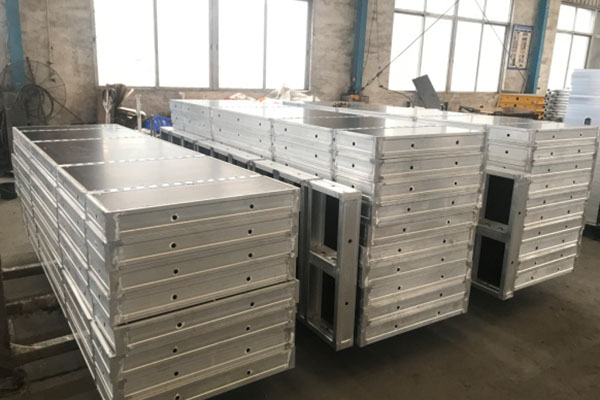

Main Production process

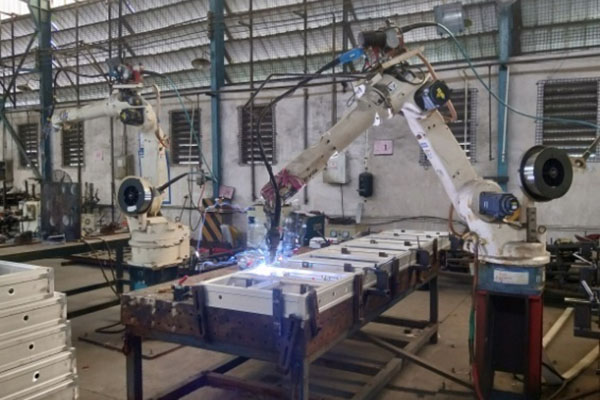

Welding

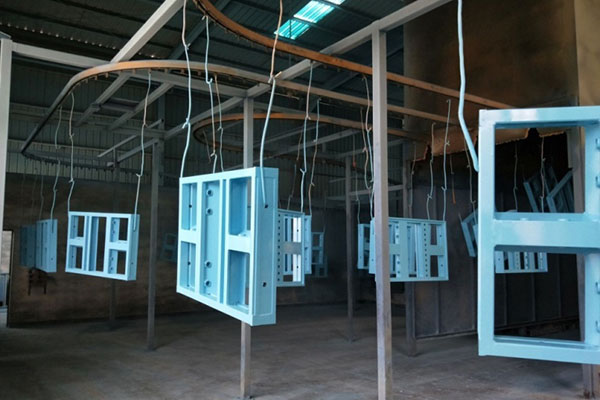

Powder Coating

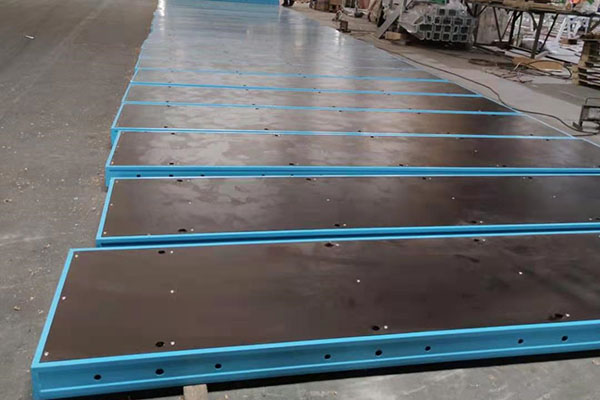

Assembling

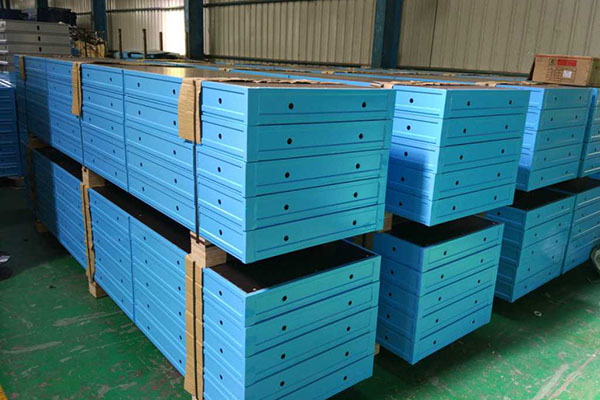

Package: in bundle or in pallet

Previous: Fastform–Early-stripping Slab Formwork

Next: Ringlock Scaffolding

Product Name: K100 Wallform System

Material: Panel: Aluminum Frame 6061-T6+ birch plywood

Size: various sizes and customization available

Loading Capacity: allowable concrete pressure: 60KN/sqm

Payment Terms: 30% deposit, 70% balance against receipt of B/L copies.

MOQ: one full container or project based
